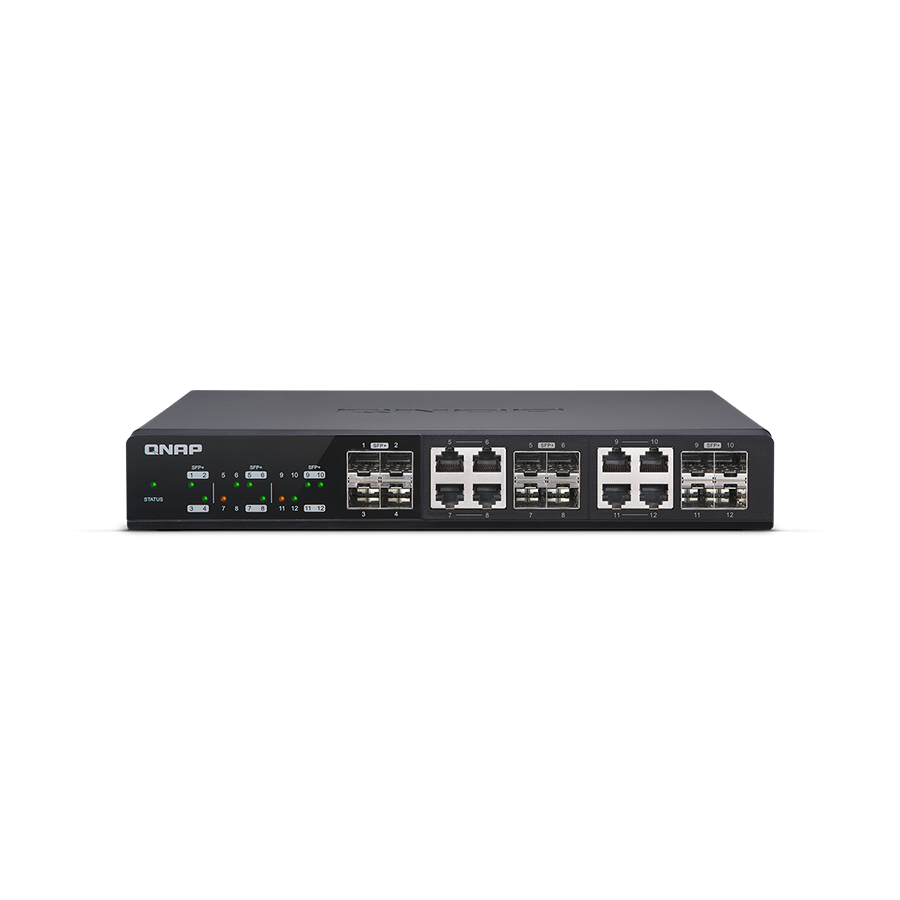

The QSW-M1208-8C is a Layer 2 Web Managed Switch with four 10GbE SFP+ ports and eight 10GbE SFP+/RJ45 combo ports that enables blazing-fast transfer speeds, simultaneous multi-workstation access to large files (ideal for video editing and multimedia), and empowers bandwidth-demanding tasks like virtualization. Supporting Layer 2 switching and providing a user-friendly entry-level network management solution, the QSW-M1208-8C is an affordable way for businesses and organizations to fully embrace 10GbE connectivity. The QSW-M1208-8C is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

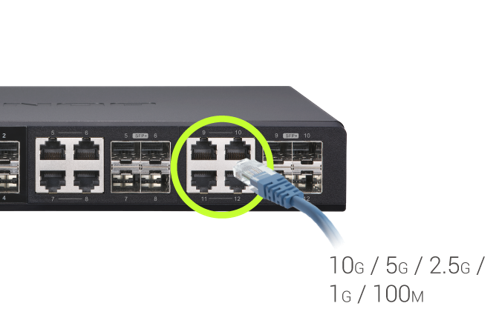

Flexible deployment combo ports and 10GbE / NBASE-T
The 12-port QSW-M1208-8C switch includes four SFP+ (fiber) ports, and eight SFP+/RJ45 (copper) combo ports for connecting different interfaces. With RJ45 interfaces, 10GbE is supported using Cat 6a (or above) cables. Direct Attach Copper (DAC) cables can be used with SFP+ ports for connecting to servers inside a rack. The switching capacity of the QSW-M1208-8C is 240 Gbps, guaranteeing the full potential of each port. The QSW-M1208-8C is also compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo ports provide higher transmission speeds with existing cables. Depending on cable types and their lengths, different speeds can be achieved for faster, more efficient data transfer.

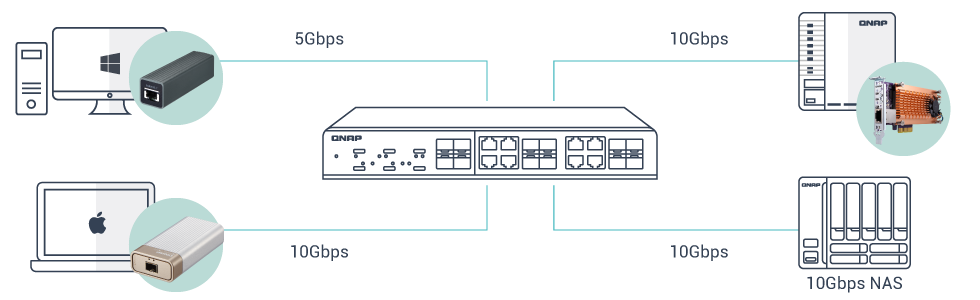

Fully embrace High-Speed Networking with QNAP!
From NAS with built-in 10GbE SFP+ and 10GBASE-T ports, or NAS with PCIe slots that support 10GbE network adapters, QNAP has led the industry in 10GbE adoption. Other high-speed network solutions from QNAP include Thunderbolt 3 to 10GbE Network Adapters and USB 3.2 Gen 1 to 5GbE Network Adapters. These can all be used with the QSW-M1208-8C to create a comprehensive high-speed network environment for boosting the performance of photo/video editing, virtualization, large-file data transfers, and other bandwidth-demanding tasks.
Specifications
| Management Type | Web Managed |
| Number of Ports | 12 |
| 10GbE SFP+ | 4 |
| 10GbE SFP+/RJ45 Combo Ports | 8
Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).
|
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 70W |
| Input Power Type | AC |
| Input Voltage Range | 100 ‒ 240VAC, 50/60Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 120Gbps |
| Switching Capacity | 240Gbps |
| Management Interface | Web |
| Console | RS232 |
| Fan | System: 4 x 4 cm (12V) |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP (IEEE 802.1p Class of Service) |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Buttons | Reset button |
| Dimensions (HxWxD) | 46.65 x 285 x 236.6 mm |
| Weight (Net) | 2.2 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5%–95% (non-condensing) |
| Certifications | FCC, CE, VCCI, BSMI, RCM, WEEE |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
